Notational Cues in ArchiMate In addition to the colors, other notational cues can be used to distinguish between the layers of the framework. A letter ‘M’, ‘S’, ‘B’, ‘A’, ‘T’, ‘P’, or ‘I’ in the top-left corner of an element…
The physical elements are added as an extension to the Technology Layer for modeling the physical world. There are only active and passive structure element concepts in the physical elements and there are no separate physical behavior elements are defined…
The implementation and migration elements support the implementation and migration of architectures which includes: Work Package Implementation Event Deliverable Gap Plateau Work Package Concept A work package is a behavior element that has a clearly defined beginning and end date,…
The implementation and migration elements support the implementation and migration of architectures. This includes: The Concepts for modeling implementation programs Projects to support program Portfolio Project management A plateau concept to support migration planning The Figure below gives an overview…
Physical concepts describe the Physical Elements, which include concepts relevant for the modeling of physical concepts like machines and physical installations. The physical elements are added as an extension to the Technology Layer for modeling the physical world. The Figure below…
The additional concepts: Resource, Capability and Course of Action introduced in the new strategy layer makes ArchiMate 3.0 more relevant for capability-based planning and strategic activities within the enterprise. The enterprise architects now can take advantage of them for ensuring the alignment of…
The Strategy concepts include a number of strategy elements as follows: Capability Resource course of action as Show in the Metamodel below: These are defined as specializations of the generic behavior and structure elements. Relationships between Strategy Concepts The diagram…

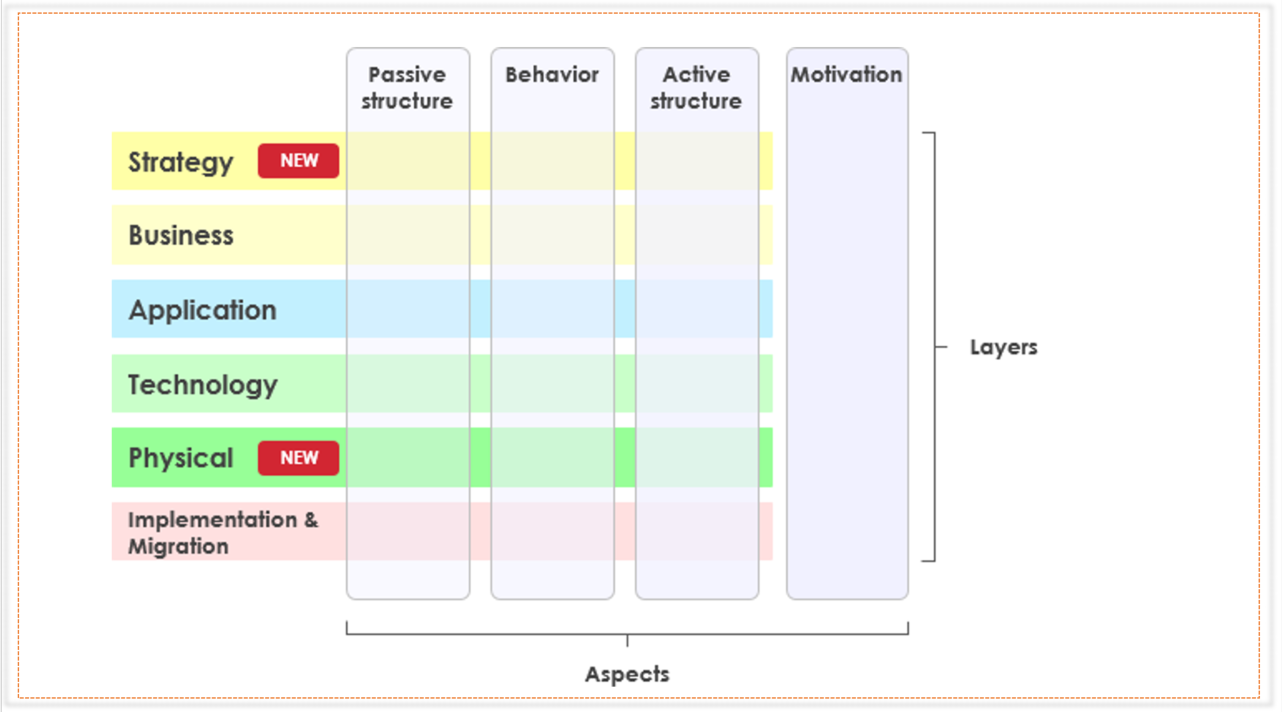

In ArchiMate models, there are no formal semantics assigned to colors and the use of color is left to the modeler. However, they can be used freely to stress certain aspects in models. In many of the example models presented…
A technology object models the passive structure elements that are used and processed by the infrastructure. Technology objects represent the “physical” objects manipulated by the infrastructure of an enterprise. Technology objects are abstract elements; i.e., they are not instantiated in models…
