Introduction

1. Problem Description

Smart City Traffic Management System

The City of San Francisco is implementing a Smart Traffic Management System to reduce congestion and improve traffic flow across the city. The system needs to:

• Collect real-time traffic data from IoT sensors installed at major intersections

• Process and analyze traffic patterns using AI algorithms

• Provide dynamic traffic light optimization based on current conditions

• Offer citizens real-time traffic information through a mobile application

• Enable traffic management officials to monitor and control the system through a dashboard

• Integrate with existing public transportation systems (buses, trains)

• Generate reports for city planning and infrastructure improvements

Key stakeholders include:

• Citizens/Commuters who need traffic information

• Traffic Management Officials who operate the system

• City Planning Department that uses analytics for decision-making

• IT Operations team responsible for system maintenance

The system must handle high-volume data processing, ensure real-time responsiveness, maintain security, and integrate with legacy municipal systems.

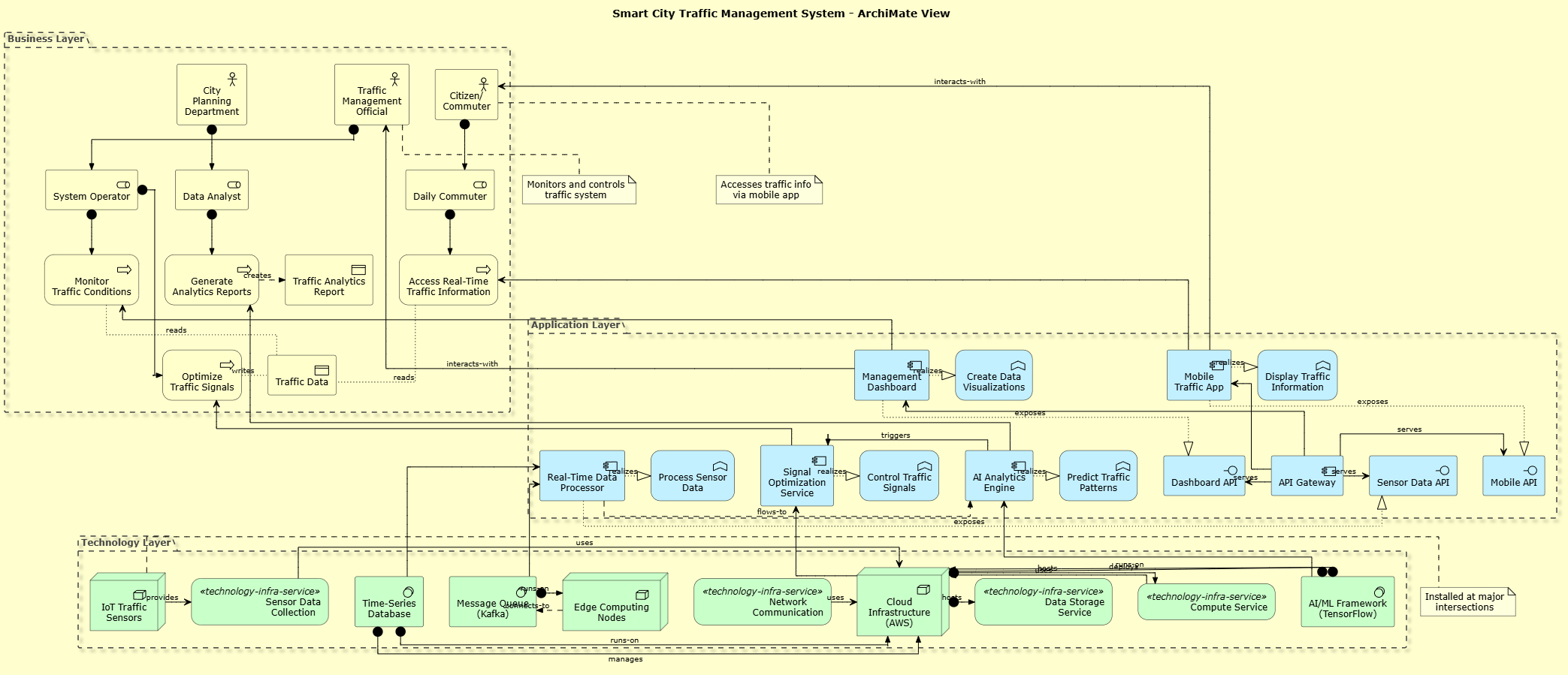

2. ArchiMate-PlantUML Diagram

@startuml
!includeurl https://raw.githubusercontent.com/plantuml-stdlib/Archimate-PlantUML/master/Archimate.puml

' Define colors for clarity
skinparam backgroundColor #FEFECE
skinparam borderColor black
skinparam shadowing false

title Smart City Traffic Management System - ArchiMate View

' === BUSINESS LAYER ===

' Business Actors
Business_Actor(citizen, "Citizen/\nCommuter")
Business_Actor(traffic_official, "Traffic\nManagement\nOfficial")
Business_Actor(city_planner, "City\nPlanning\nDepartment")

' Business Roles
Business_Role(commuter_role, "Daily Commuter")
Business_Role(operator_role, "System Operator")
Business_Role(analyst_role, "Data Analyst")

' Business Processes
Business_Process(monitor_traffic, "Monitor\nTraffic Conditions")
Business_Process(optimize_signals, "Optimize\nTraffic Signals")
Business_Process(generate_reports, "Generate\nAnalytics Reports")
Business_Process(access_info, "Access Real-Time\nTraffic Information")

' Business Objects
Business_Object(traffic_data, "Traffic Data")
Business_Object(report, "Traffic Analytics\nReport")

' Relationships
Rel(citizen, commuter_role, "assigned-to")
Rel(traffic_official, operator_role, "assigned-to")
Rel(city_planner, analyst_role, "assigned-to")

Rel(commuter_role, access_info, "performs")
Rel(operator_role, monitor_traffic, "performs")
Rel(operator_role, optimize_signals, "performs")
Rel(analyst_role, generate_reports, "performs")

Rel(access_info, traffic_data, "reads")
Rel(monitor_traffic, traffic_data, "reads")
Rel(optimize_signals, traffic_data, "writes")
Rel(generate_reports, report, "creates")

' === APPLICATION LAYER ===

' Application Components
Application_Component(mobile_app, "Mobile\nTraffic App")
Application_Component(dashboard, "Management\nDashboard")
Application_Component(analytics_engine, "AI Analytics\nEngine")
Application_Component(signal_controller, "Signal\nOptimization\nService")
Application_Component(data_processor, "Real-Time Data\nProcessor")
Application_Component(api_gateway, "API Gateway")

' Application Functions
Application_Function(process_sensor_data, "Process Sensor\nData")
Application_Function(predict_patterns, "Predict Traffic\nPatterns")
Application_Function(control_signals, "Control Traffic\nSignals")
Application_Function(display_info, "Display Traffic\nInformation")
Application_Function(create_visualizations, "Create Data\nVisualizations")

' Application Interfaces
Application_Interface(mobile_api, "Mobile API")
Application_Interface(dashboard_api, "Dashboard API")
Application_Interface(sensor_api, "Sensor Data API")

' Relationships - Application Layer
Rel(mobile_app, mobile_api, "exposes")
Rel(dashboard, dashboard_api, "exposes")
Rel(data_processor, sensor_api, "exposes")

Rel(mobile_app, display_info, "realizes")
Rel(dashboard, create_visualizations, "realizes")
Rel(analytics_engine, predict_patterns, "realizes")
Rel(signal_controller, control_signals, "realizes")
Rel(data_processor, process_sensor_data, "realizes")

Rel(api_gateway, mobile_api, "serves")
Rel(api_gateway, dashboard_api, "serves")
Rel(api_gateway, sensor_api, "serves")

Rel(data_processor, analytics_engine, "flows-to")
Rel(analytics_engine, signal_controller, "triggers")

' === TECHNOLOGY LAYER ===

' Technology Nodes
Technology_Node(iot_sensors, "IoT Traffic\nSensors")
Technology_Node(cloud_infrastructure, "Cloud\nInfrastructure\n(AWS)")
Technology_Node(edge_computing, "Edge Computing\nNodes")

' Technology Services
Technology_Service(sensor_collection, "Sensor Data\nCollection")
Technology_Service(compute_service, "Compute Service")
Technology_Service(storage_service, "Data Storage\nService")
Technology_Service(network_service, "Network\nCommunication")

' System Software
System_Software(message_queue, "Message Queue\n(Kafka)")
System_Software(database, "Time-Series\nDatabase")
System_Software(ai_framework, "AI/ML Framework\n(TensorFlow)")

' Technology Interfaces
Technology_Interface(mqtt_protocol, "MQTT Protocol")
Technology_Interface(rest_api, "REST API")
Technology_Interface(websocket, "WebSocket")

' Relationships - Technology Layer
Rel(iot_sensors, sensor_collection, "provides")
Rel(cloud_infrastructure, compute_service, "hosts")
Rel(cloud_infrastructure, storage_service, "hosts")

Rel(sensor_collection, mqtt_protocol, "uses")
Rel(compute_service, rest_api, "uses")
Rel(network_service, websocket, "uses")

Rel(message_queue, network_service, "runs-on")
Rel(database, storage_service, "runs-on")
Rel(ai_framework, compute_service, "runs-on")

Rel(edge_computing, message_queue, "connects-to")
Rel(cloud_infrastructure, database, "manages")
Rel(cloud_infrastructure, ai_framework, "deploys")

' === CROSS-LAYER RELATIONSHIPS ===

' Business to Application
Rel(access_info, mobile_app, "used-by")
Rel(monitor_traffic, dashboard, "used-by")
Rel(optimize_signals, signal_controller, "used-by")
Rel(generate_reports, analytics_engine, "used-by")

' Application to Technology
Rel(mobile_app, api_gateway, "runs-on")
Rel(dashboard, api_gateway, "runs-on")
Rel(data_processor, message_queue, "uses")
Rel(analytics_engine, ai_framework, "uses")
Rel(data_processor, database, "uses")
Rel(signal_controller, rest_api, "uses")

' Business to Technology (indirect through applications)
Rel(citizen, mobile_app, "interacts-with")
Rel(traffic_official, dashboard, "interacts-with")

note bottom of citizen
  Accesses traffic info
  via mobile app
end note

note bottom of traffic_official
  Monitors and controls
  traffic system
end note

note right of iot_sensors
  Installed at major
  intersections
end note

@enduml

3. Explanation and Interpretation

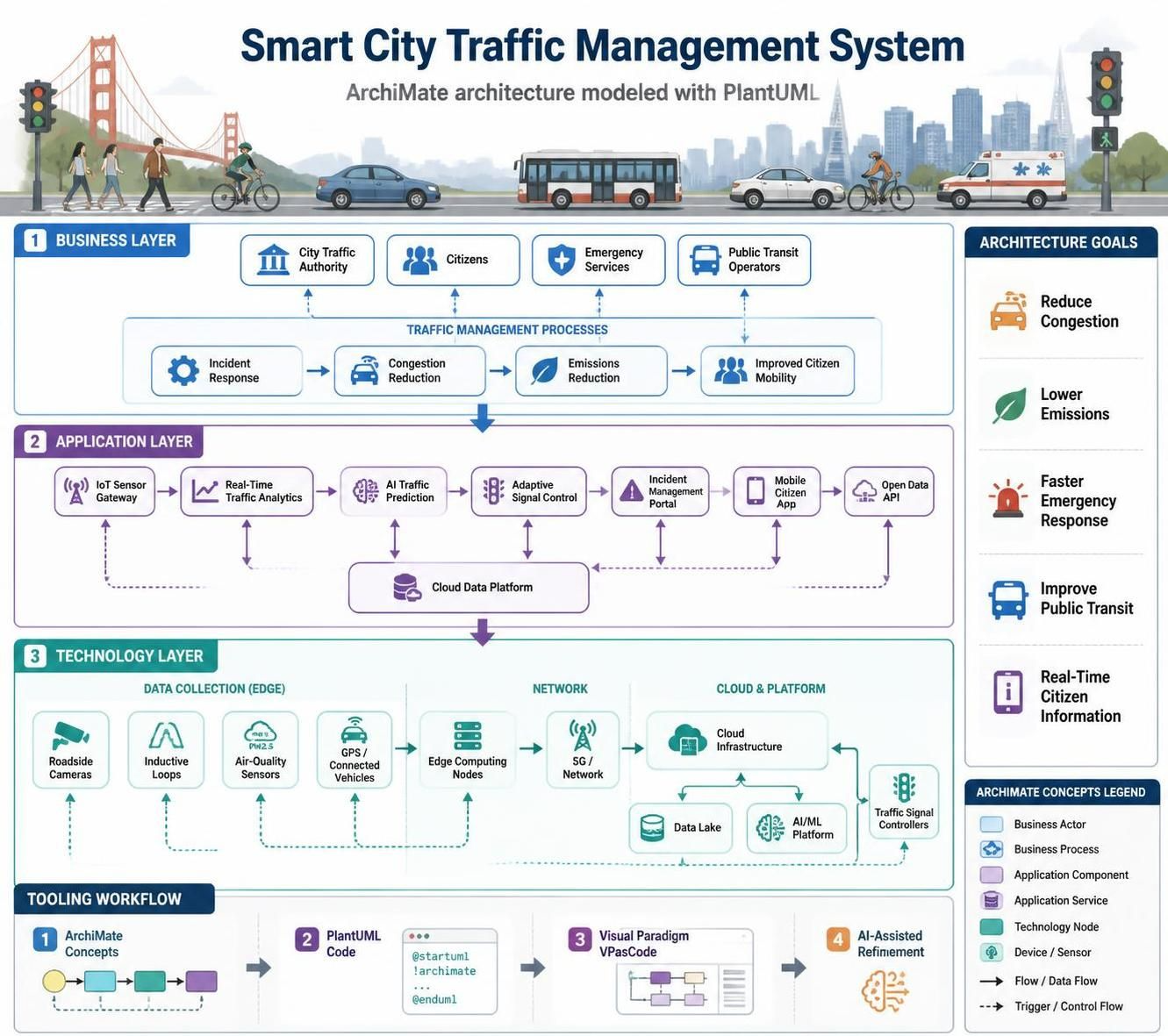

Architecture Overview

This ArchiMate diagram presents a three-layer architecture for the Smart City Traffic Management System:

Business Layer (Top)

• Actors: Three primary stakeholders – Citizens (commuters), Traffic Management Officials, and City Planners

• Processes: Key business processes including monitoring traffic, optimizing signals, generating reports, and accessing information

• Objects: Traffic data (input) and analytics reports (output)

• Purpose: Defines what the organization does and who performs these activities

Application Layer (Middle)

• Components: Five main application services:

  • Mobile Traffic App (citizen-facing)

  • Management Dashboard (official-facing)

  • AI Analytics Engine (pattern prediction)

  • Signal Optimization Service (traffic control)

  • Real-Time Data Processor (data ingestion)

• Interfaces: APIs that enable communication between components and external systems

• Functions: Specific capabilities each component provides

• Purpose: Shows how business processes are automated and supported

Technology Layer (Bottom)

• Nodes: Physical/digital infrastructure including IoT sensors, cloud infrastructure (AWS), and edge computing nodes

• Services: Technical services like sensor collection, compute, storage, and networking

• System Software: Message queues (Kafka), time-series databases, and AI frameworks (TensorFlow)

• Purpose: Defines the technical foundation supporting the applications

Key Relationships

1. Vertical Integration: Each layer supports the one above it

   • Technology enables Applications

   • Applications enable Business processes

2. Data Flow:

   • IoT sensors → Message Queue → Data Processor → Database

   • Data Processor → Analytics Engine → Signal Controller

   • Analytics Engine → Dashboard & Mobile App

3. User Interaction:

   • Citizens interact with Mobile App via REST API

   • Officials use Dashboard for monitoring and control

   • Both access real-time data processed through the system

Architectural Principles Demonstrated

• Separation of Concerns: Clear layering prevents tight coupling

• Scalability: Cloud infrastructure and message queuing support high volume

• Real-time Processing: Edge computing reduces latency for critical decisions

• API-First Design: Standardized interfaces enable integration

• Event-Driven Architecture: Kafka enables asynchronous, scalable data processing

Benefits of This Architecture

1. Modularity: Components can be updated independently

2. Scalability: Cloud-based infrastructure handles variable loads

3. Maintainability: Clear boundaries make troubleshooting easier

4. Extensibility: New features can be added without disrupting existing services

5. Security: API gateway provides centralized security controls

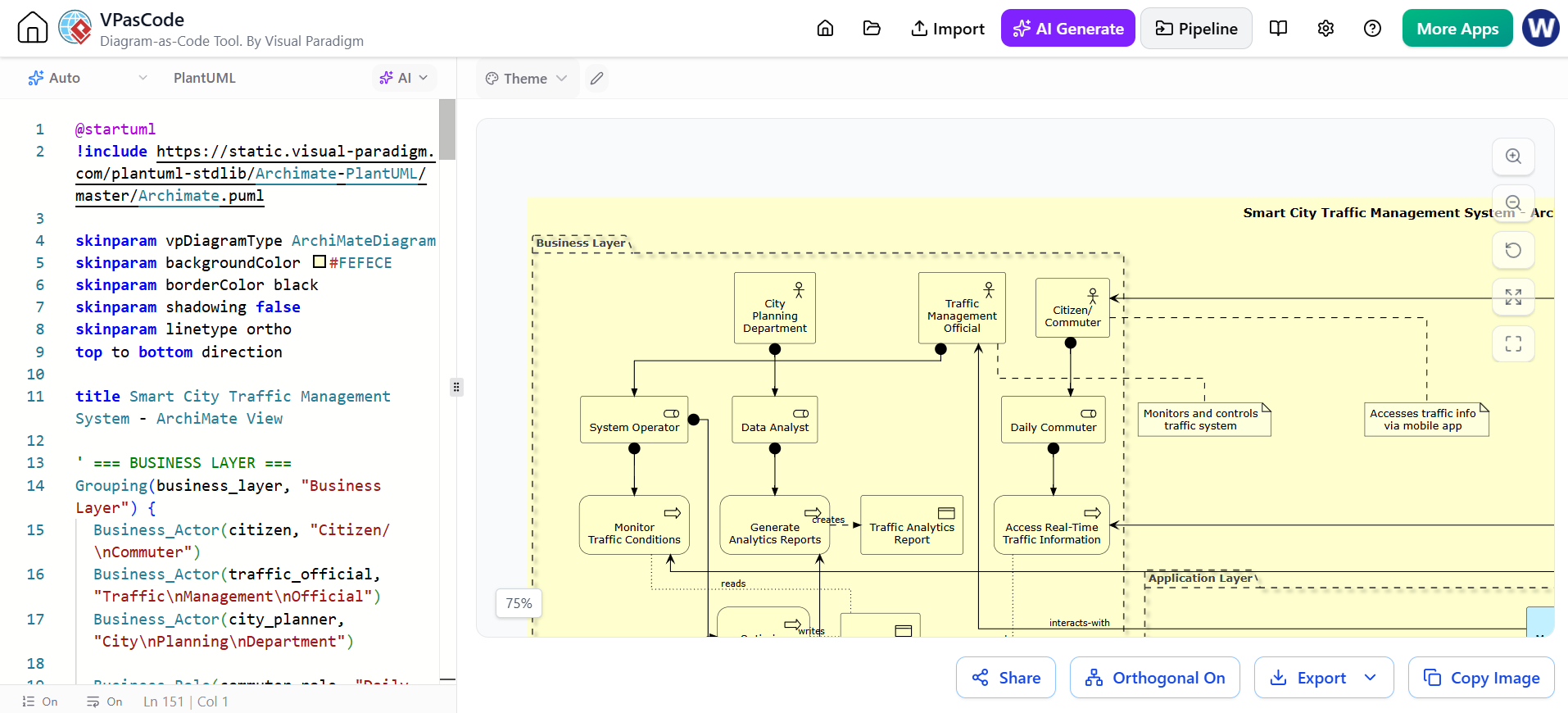

4. Tooling: Visual Paradigm VPasCode + AI Assisted

Using Visual Paradigm with VPasCode

Setup Steps:

1. Install Visual Paradigm (Community or Professional Edition)

2. Enable VPasCode Plugin:

   • Go to Tools > Plugin Manager

   • Install VPasCode extension

   • Restart Visual Paradigm

3. Create ArchiMate Project:

   • File > New Project > ArchiMate

   • Select appropriate framework version (ArchiMate 3.1 recommended)

4. Import PlantUML Code:

   • Open VPasCode editor (View > VPasCode)

   • Paste the PlantUML code above

   • Click “Render” to generate the diagram

   • The tool will automatically create ArchiMate elements in your project

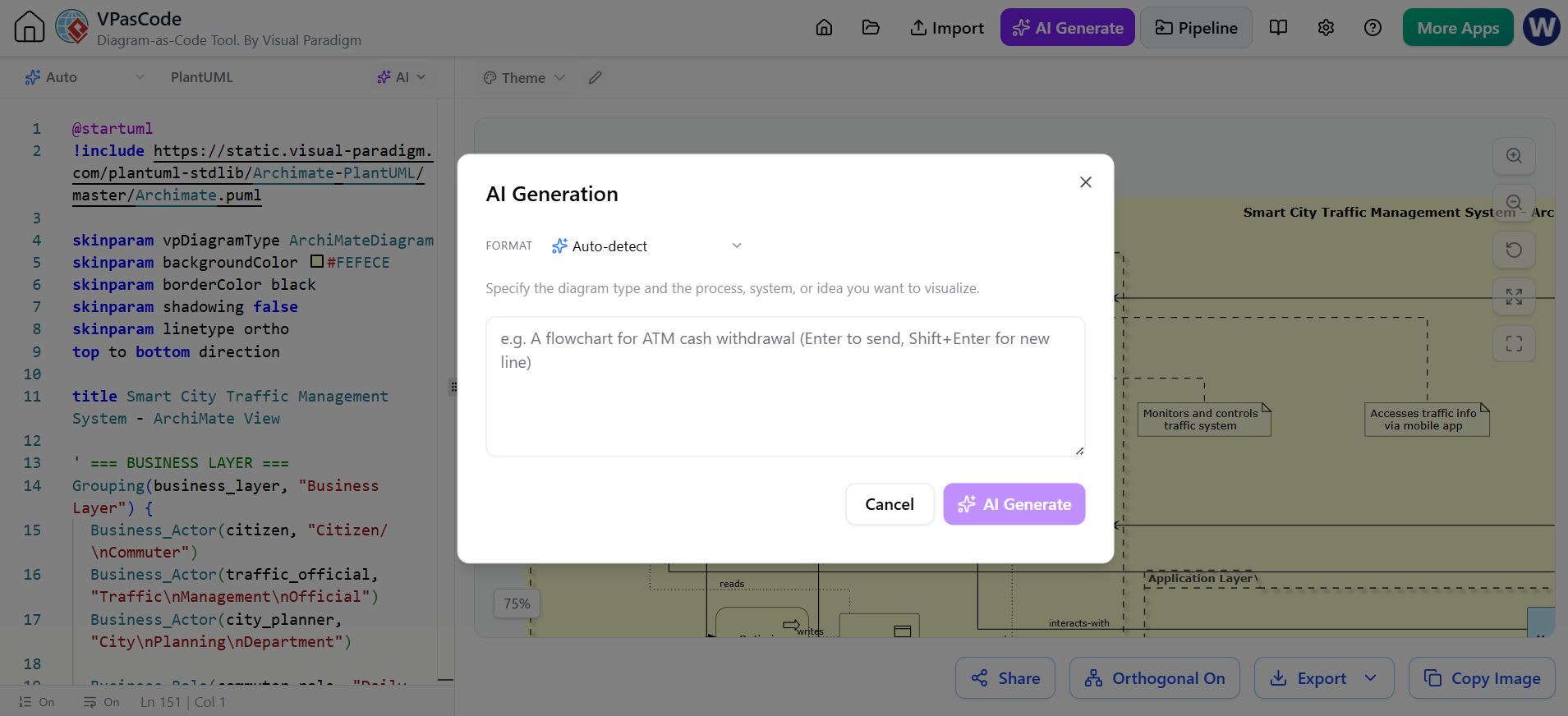

AI-Assisted Modeling Workflow

Step 1: Requirements Analysis with AI

Prompt: "Analyze these requirements for a traffic management system and identify
key business actors, processes, and application components..."

Step 2: Architecture Pattern Selection

Prompt: "Recommend an ArchiMate architecture pattern for a real-time IoT system
with cloud backend and mobile frontend..."

Step 3: Element Generation

Prompt: "Generate ArchiMate elements for the following application services:
mobile app, dashboard, analytics engine, signal controller, data processor..."

Step 4: Relationship Mapping

Prompt: "Define relationships between these ArchiMate elements following
best practices for service-oriented architecture..."

Step 5: Validation and Optimization

Prompt: "Review this ArchiMate diagram for completeness, consistency, and
adherence to ArchiMate modeling principles..."

VPasCode Features for ArchiMate

1. Syntax Highlighting: Color-coded ArchiMate element types

2. Auto-completion: Suggests valid ArchiMate relationships

3. Real-time Preview: Instant diagram rendering as you type

4. Error Detection: Validates ArchiMate syntax rules

5. Template Library: Pre-built patterns for common architectures

6. Export Options: PNG, SVG, PDF, and native VP format

Best Practices When Using AI + VPasCode

1. Iterative Refinement: Start with high-level structure, then add details

2. Validation: Always review AI-generated models for accuracy

3. Consistency: Use consistent naming conventions across layers

4. Documentation: Add notes and descriptions to clarify complex relationships

5. Version Control: Save iterations to track architectural evolution

6. Stakeholder Review: Share diagrams with business users for validation
