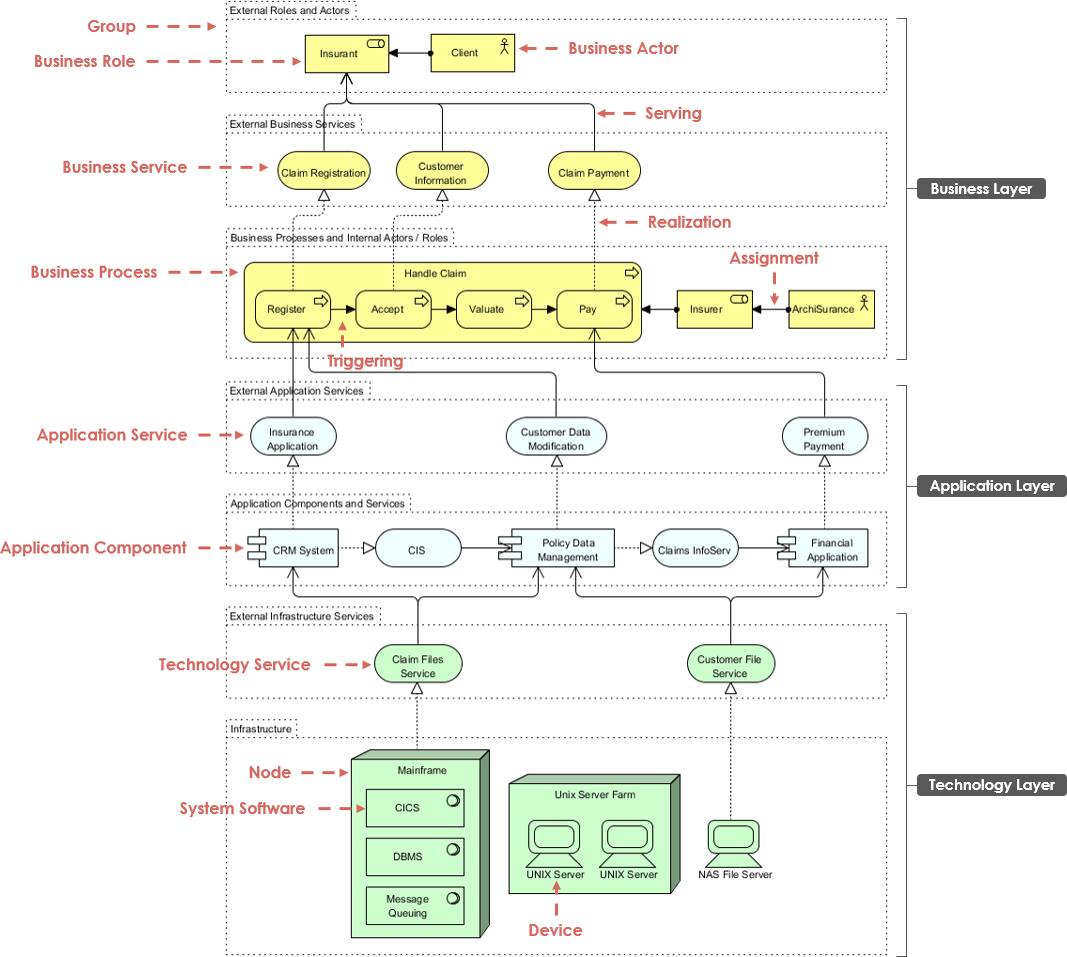

In the example model below, you can see the integration from the technology layer, with e.g. the mainframe on which the database runs, via the application layer, with e.g. the policy administration, all the way up to the business layer, with the client who wants to register an insurance claim and the business process that provides the necessary services.
ArchiMate Core Framework Example
